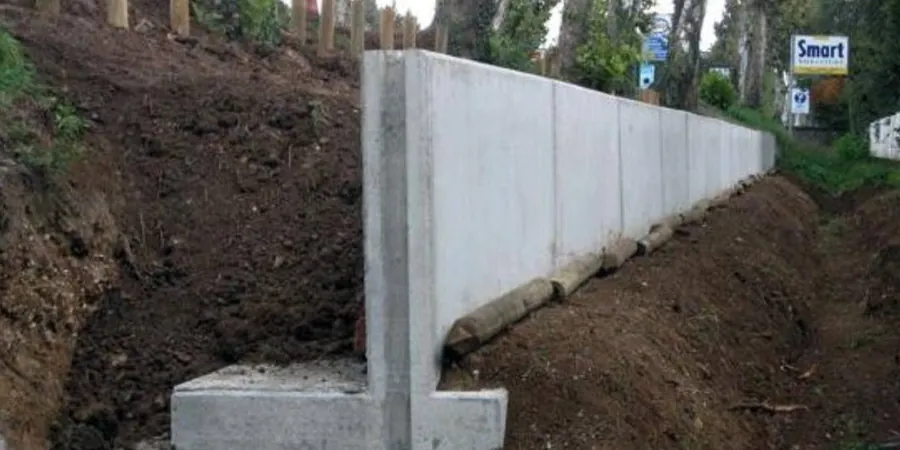

In Visalia, the category Slopes & Walls addresses the interaction between engineered earth retention and the region’s alluvial and foothill geology. Local projects must comply with California Building Code Chapter 18 and Caltrans standards, particularly where expansive near‑surface soils and seasonal groundwater demand robust design. Our practice integrates slope stability analysis to evaluate global failure mechanisms, while retaining wall design ensures structural and geotechnical compliance for cut and fill conditions across residential and commercial sites.
Typical applications range from roadway widening along the St. Johns River levees to vineyard terracing and hillside development. When surcharge loads or limited right‑of‑way govern, we employ active/passive anchor design to deliver high‑capacity restraint with minimal disturbance. Each solution is calibrated to Visalia’s seismic setting and drainage patterns, delivering durable earth retention that meets jurisdictional review requirements.
A passive anchor grouted entirely within the Mehrten Formation can hold 45 psi bond stress with negligible creep, but split the bond zone across the alluvium contact and you’ve introduced a progressive debonding mechanism.
Scope of work in Visalia
Working video
Local geotechnical conditions in Visalia
At 331 feet above sea level, Visalia sits on the distal portion of the Kings River alluvial fan, where a 7.1-magnitude rupture on a previously unrecognized blind thrust would produce peak ground accelerations near 0.42g according to the USGS’s 2023 NSHM update. For a permanent tieback wall restraining 25 feet of cut, that level of shaking imposes a dynamic increment on the anchor load that many legacy designs in the Central Valley never considered. We run site-specific response spectra through PLAXIS 2D to quantify the seismic demand on each anchor level, and we specify unbonded lengths that extend well past the critical failure surface defined by the FHWA’s apparent earth pressure envelope. In Visalia’s layered profile, the highest risk is not anchor rupture but a progressive loss of lock-off load as the grout-ground interface degrades under cyclic shear, which is why we insist on lift-off testing at six-month intervals for critical retaining structures.
Our services
We configure anchor systems specifically for the alluvial-to-hardpan transition that defines Visalia’s near-surface stratigraphy. The three packages below cover the majority of projects we support, from commercial excavations along Mooney Boulevard to flood control structures near Mill Creek.
Permanent Tieback Design for Cut Walls
Full design of active and passive anchors for permanent soldier pile and secant pile walls. Includes bond length optimization using CPT tip resistance profiles, lock-off load determination accounting for long-term relaxation in the Mehrten Formation, and double-corrosion-protection detailing per PTI Class I.
Anchor Proof Testing and Lift-Off Verification
On-site performance and proof testing using hydraulic jacks with digital load cells and LVDT displacement sensors. We run incremental loading cycles to 133% of design load and measure creep rate over a 60-minute hold period, flagging any tendon that exceeds 0.04-inch movement per log cycle.
Seismic Anchor Demand Analysis
Site-specific seismic demand assessment for anchor walls, combining the USGS 2023 NSHM hazard curves with 1D equivalent-linear site response in DEEPSOIL. Outputs include anchor load envelopes for the design earthquake and the maximum considered earthquake, plus recommendations for unbonded length extension where cyclic degradation is a concern.
In Visalia, where the Sierra Nevada foothills meet the San Joaquin Valley floor, slope stability and retaining wall design demand a thorough understanding of local alluvial and colluvial deposits. Our slope and wall investigation services address the complex interactions between native soils, groundwater, and planned structures, working in strict accordance with Tulare County grading ordinances and California Building Code Chapter 18. We routinely characterize the stiff, overconsolidated clays and interbedded silty sands that define the regional subsurface, providing the critical soil parameters needed for limit equilibrium analyses. This foundational work often integrates our laboratory testing suite to measure drained shear strength and our subsurface investigation techniques to map stratigraphic contacts and seepage zones that control global stability.
Our analytical methodology follows FHWA Geotechnical Engineering Circulars for MSE walls and soil nail systems, combined with USACE slope stability manuals for natural and engineered cuts. We deploy CPT (Cone Penetration Test) soundings to obtain near-continuous profiles of tip resistance and pore pressure, which are essential for identifying weak clay seams and liquefiable layers in the near-surface Holocene deposits common to Visalia. For earthwork control during wall construction, we perform field density tests using the sand cone method per ASTM D1556, ensuring that structural backfill achieves a minimum 95% relative compaction as specified in Caltrans Standard Specifications. These field measurements are correlated with grain size analysis (sieve + hydrometer) results to confirm that imported materials meet the permeability and friction angle assumptions of the design, preventing the use of poorly draining fines that could build hydrostatic pressure behind retaining structures.
Typical Visalia projects range from residential cut-and-fill lots in the Caldwell Avenue corridor to commercial retaining walls supporting big-box retail pads near Plaza Drive. We frequently consult on remediation for distressed slopes in older subdivisions where expansive Porterville-clay series soils have caused progressive creep and wall rotation. These investigations rely heavily on Atterberg limits testing to quantify the high plasticity and shrink-swell potential that drives seasonal movement. For large-scale solar farm developments on the valley’s western edge, our In-Situ programs establish the pre-construction shear strength of native soils, allowing engineers to optimize cut slopes and design mechanically stabilized earth walls that accommodate the site’s static and seismic demands without excessive over-excavation.
Our process begins with a desktop review of USDA soil surveys and historic geotechnical reports, followed by a targeted field exploration that includes hollow-stem auger borings and CPT soundings. We deliver a comprehensive report containing cross-sections, laboratory test summaries, and global stability modeling output with recommended factors of safety that satisfy the Tulare County Building Department. For retaining walls, we provide bearing capacity, sliding resistance, and overturning calculations, along with drainage specifications to mitigate hydrostatic forces. The value we bring to Visalia developers and structural engineers is a defensible, analytically rigorous design package that reduces earthwork risk, accelerates plan check approval, and ensures the long-term performance of slopes and walls under both static and seismic loading conditions. Every recommendation is grounded in our foundations engineering experience, linking shallow and deep foundation behavior directly to the retained soil mass.
